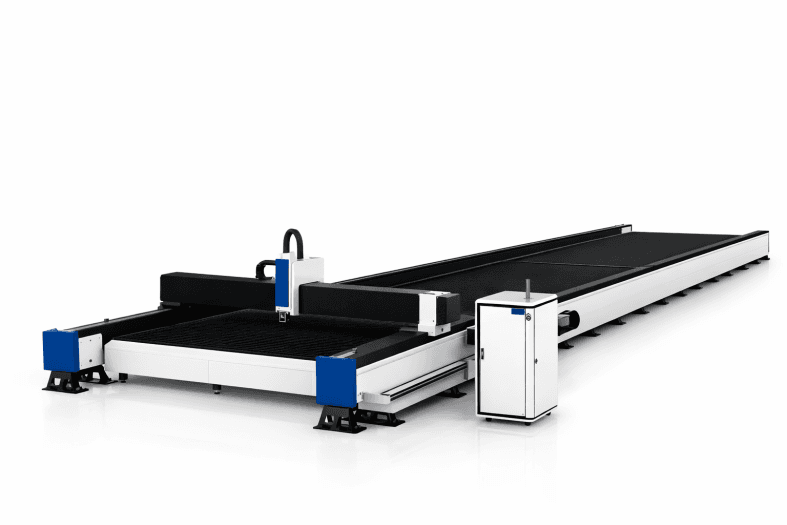

Industrial-Grade Ground Rail Laser Cutting
Ground rail fiber laser cutting machines represent the industrial-grade direction in fiber laser technology. By mounting the cutting rails directly to the floor, this design provides maximum stability and rigidity for large-format and heavy-duty cutting applications.
The ground rail structure is particularly well-suited for workshops that need to process oversized sheets, long workpieces, and heavy materials. The stable foundation ensures consistent accuracy even at high cutting speeds.
Whether you are cutting large structural components, heavy industrial panels, or oversized plates, ground rail laser cutting machines deliver the stability and capacity required for demanding industrial production.
Get Configuration Recommendation
See Ground Rail Laser Cutting in Action
Watch how ground rail structure supports large-format and heavy-duty industrial cutting applications.
Video coming soon
Industrial-Grade Stability for Large Format Production
Ground rail laser cutting machines use a unique structure where the moving rails are mounted directly to the floor, providing a stable foundation for the entire cutting system. This design offers superior rigidity compared to table-mounted systems.
The ground rail structure is particularly well-suited for large-format sheets, long workpieces, and heavy materials that require maximum support and precise positioning throughout the cutting process.
For industrial fabrication shops that prioritize stability, accuracy on large parts, and heavy-duty capability, ground rail laser cutting machines represent the optimal choice.
Why Choose Ground Rail Laser Cutting
Maximum Stability
Ground-mounted rails provide the most stable platform available, eliminating vibration and deflection for consistent cutting accuracy at high speeds.
Large Format Support
Designed specifically for oversized sheets and long workpieces that exceed standard table dimensions. Supports formats beyond 6000mm in length.
Heavy-Duty Construction
Built to handle heavy workpieces and demanding industrial applications with reinforced frame design and robust components.
Superior Rigidity
Floor-mounted rail system provides exceptional stiffness for precise positioning and consistent accuracy over long production runs.
Enhanced Load Capacity
Ground rail structure supports heavier workpiece weights compared to table-mounted systems, enabling processing of thick plates.
Industrial Production Ready
Designed for multi-shift operation in demanding industrial environments with minimal maintenance requirements.
Laser Cutting Machine Series
Choose the right laser cutting machine structure for your production needs.
Ground Rail
Maximum StabilityGround-mounted rail design for maximum stability and large-format processing.
- Ground-mounted rail structure
- Maximum stability and rigidity
- Large format support
- Heavy-duty industrial applications
Beam Enclosed Ground Rail
Industrial EnclosedGround rail with enclosed beam for enhanced protection and organized work zone.
- Enclosed beam structure
- Ground rail enhanced stability
- Protected cutting area
- Organized work environment
Open Type
Open TableOpen table design for straightforward sheet metal cutting.
- Open table design
- Easy access for loading
- Practical operation
- Standard format
Choose Ground Rail if...
- You need maximum stability and rigidity — Ground rail construction provides the most stable platform available for precision cutting.
- Your work involves large format sheets — Designed specifically for oversized workpiece processing beyond standard table capacities.
- You handle heavy workpieces regularly — Enhanced load capacity supports thick plates and heavy structural components.
- You run demanding industrial operations — Built for multi-shift production in demanding industrial environments.
Typical Applications
Ground rail fiber laser cutting machines are deployed in industrial environments requiring maximum stability for large-format and heavy-duty cutting.
Standard Configuration
Every open type laser cutting machine is configured with proven components for reliable daily operation.
Rail System
- Ground-mounted precision rails
- Reinforced rail support structure
- High-precision rail grinding
- Stable floor foundation design
Laser Source
- IPG / Raycus / Max Photonics fiber laser
- Power range: 6kW - 30kW
- Stable output power
- Long service life
Cutting Head
- Precitec / Raytools cutting head
- Auto focus capability
- Height following sensor
- Anti-collision protection
Motion System
- Yaskawa / Panasonic servo motors
- HIWIN precision linear guides
- High positioning accuracy
- Smooth acceleration
CNC Controller Options
Choose the right control platform for your operation style and production requirements.
CypCut Control System
StandardIndustry-standard control system with intuitive interface for programming and operation. Supports common file formats and provides reliable performance for daily cutting tasks.
CypOne Advanced Control
OptionalAdvanced control system with enhanced features including 3D simulation, auto parameter optimization and production management tools for higher productivity.
Not sure which controller? Share your production context and we will recommend the right fit.
Core Specifications at a Glance
Technical Specifications
Ground Rail Fiber Laser Cutting Machine
| Model | Format Sizemm | Laser PowerkW | Speedm/min | Accuracymm |
|---|---|---|---|---|
| ZW-LGR-6020 | 6000 × 2000 | 6 - 20 | 80 | ±0.05 |
| ZW-LGR-8020 | 8000 × 2000 | 10 - 30 | 90 | ±0.05 |
| ZW-LGR-12030 | 12000 × 3000 | 15 - 30 | 100 | ±0.05 |
* All figures are standard values. For custom configurations and detailed specifications, please contact our engineering team.
Trusted Worldwide
ZW CNC Machine
Why Choose ZW CNC for Your Ground Rail Laser Cutter
ZW CNC has decades of experience in laser cutting machine manufacturing. Our ground rail series is built with industrial-grade components and rigorous quality control for demanding large-format applications.
Proven Manufacturing Base
50,000m² facility with advanced production equipment, validated over 48 years of laser cutting machine manufacturing for global markets.
Global Service Network
50+ service centers worldwide with 24-hour response capability, so your equipment stays productive across different markets.
Engineered for Long-term Value
Strong configuration designed for demanding production — built to support multi-shift operation and long-term upgrade paths.
Frequently Asked Questions
- Ground rail design provides maximum rigidity and stability by mounting the rails directly to the floor. This eliminates vibration and deflection that can occur with elevated gantry systems, resulting in better cutting accuracy and consistency, especially at high speeds and on large workpieces.
- Ground rail machines can be configured for formats from 6000mm up to 12000mm or custom sizes. Format selection depends on your maximum workpiece dimensions and workshop layout. Tell us your requirements and we will specify accordingly.
- Ground rail machines offer superior stability and load capacity compared to standard table machines. They are better suited to large-format workpieces, heavy materials, and industrial applications. Standard table machines are typically chosen for smaller to medium formats and general sheet cutting.
- Heavy industrial applications typically require 10kW to 20kW or higher to handle thick plate cutting efficiently. Power selection depends on your maximum thickness requirements and desired cutting speeds.
- Ground rail machines require proper foundation preparation including a level concrete floor with adequate load-bearing capacity. We provide specific foundation specifications based on machine configuration and installation requirements.
What are the main advantages of ground rail design?
What is the maximum format size available?
How does ground rail compare to standard table machines?
What laser power is recommended for heavy industrial applications?
What foundation requirements exist for ground rail machines?
Ready to Explore Ground Rail Laser Cutting?
Tell us your format size requirements, typical workpiece dimensions, and production specifications. We will recommend the right ground rail configuration for your industrial application.
