Open Exchange Table

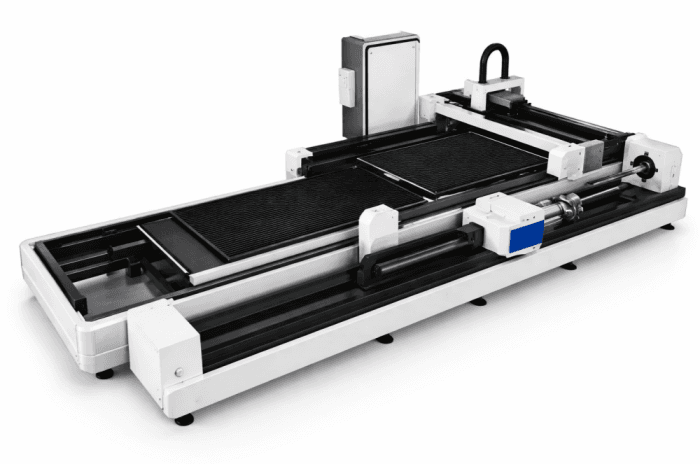

Open Exchange Sheet & Tube Fiber Laser Cutting Machine
Open Exchange Sheet & Tube Dual-Purpose Laser Cutting
Open exchange sheet & tube fiber laser cutting machines combine the efficiency of exchange table design with tube processing capability, offering a practical dual-purpose solution for mixed production workshops.
The exchange table allows loading while cutting continues on the alternate table, reducing idle time and improving overall throughput. Integrated tube processing adds flexibility for workshops that handle both sheet metal and tube components.
This series is available in 3015 and 4020 configurations with laser power options from 1kW to 15kW, suitable for diverse production requirements.
Get Configuration RecommendationSee Open Exchange Sheet & Tube Laser Cutting in Action
Watch how the exchange table design and tube capability support mixed sheet and tube production in workshop environments.
Video coming soon
Dual-Purpose Laser Cutting for Mixed Production
Open exchange sheet & tube machines combine the accessibility of open table design with the continuous cutting capability of exchange tables, while adding tube processing functionality.
This dual-purpose design is well suited to workshops that handle both sheet metal and tube cutting as part of their regular production mix. The exchange table reduces idle time between cuts, while the tube attachment provides flexibility.
Rather than maintaining separate machines for sheet and tube work, the open exchange sheet & tube series offers a practical unified solution for mixed production environments.
Why Choose Open Exchange Sheet & Tube
Dual Processing Capability
Handles both sheet metal and tube cutting on a single machine, eliminating the need for separate equipment.
Open Exchange Table Design
Exchange table functionality reduces loading downtime while open design maintains easy access for setup and monitoring.
Reduced Loading Downtime
Exchange table allows loading while cutting continues on the alternate table, improving overall production efficiency.
Versatile Material Processing
Switch between sheet metal and tube processing based on production needs without retooling or relocating workpieces.
Cost-Effective Mixed Production
One machine handles what traditionally required two, reducing capital investment and floor space requirements.
Practical for Fabrication Workshops
Ideal for job shops and fabrication shops that handle varied production runs including both sheet and tube components.
Laser Cutting Machine Series
Choose the right laser cutting machine structure for your production needs.
Open Exchange Sheet & Tube
Dual PurposeOpen exchange table with tube capability for mixed sheet and tube production.
- Sheet + tube dual processing
- Open exchange table design
- Reduced loading downtime
- Versatile mixed production
Open Type
Open TableOpen table structure for straightforward sheet metal cutting.
- Open table for easy access
- Simple operation
- Cost-effective entry
- Standard sheet metal work
Exchange Table
Continuous CuttingDual-table design for continuous cutting with minimal downtime.
- Exchange table for continuous operation
- Reduced idle time
- High-volume production
- Automated table switching
Choose Open Exchange Sheet & Tube if...
- You process both sheets and tubes regularly — Dual-purpose capability eliminates the need for separate machines.
- You want to reduce loading downtime — Exchange table design keeps cutting productive during material changes.
- You need flexibility in production mix — Easy switching between sheet and tube processing as needed.
- Floor space is at a premium — One machine handles what traditionally required two separate setups.
Typical Applications
Open exchange sheet & tube machines are used in fabrication shops that regularly process both sheet metal and tube components.
Standard Configuration
Every open type laser cutting machine is configured with proven components for reliable daily operation.
Laser Source
- IPG / Raycus / Max Photonics fiber laser
- Power range: 1kW - 15kW
- Stable output power
- Low maintenance design
Cutting Head
- Precitec / Raytools cutting head
- Auto focus capability
- Height following sensor
- Anti-collision protection
Motion System
- Yaskawa / Panasonic servo motors
- HIWIN linear guides
- High positioning accuracy
- Smooth acceleration
Control System
- CypCut / CypOne control system
- User-friendly interface
- USB / network file transfer
- Real-time monitoring
CNC Controller Options
Choose the right control platform for your operation style and production requirements.

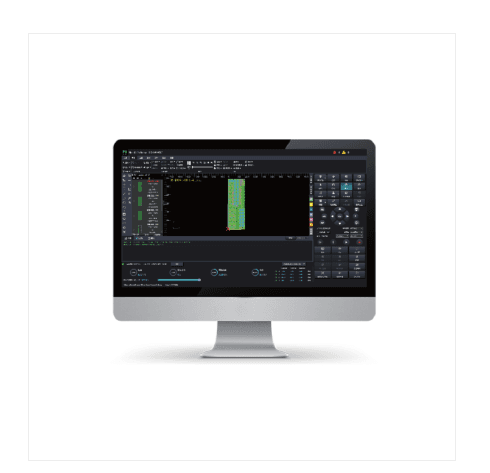

CypCut Control System
StandardIndustry-standard control system with intuitive interface for programming and operation. Supports common file formats and provides reliable performance for daily cutting tasks.
CypOne Advanced Control
OptionalAdvanced control system with enhanced features including 3D simulation, auto parameter optimization and production management tools for higher productivity.
Not sure which controller? Share your production context and we will recommend the right fit.
Optional Upgrades for Different Production Needs
Enhance your machine with optional accessories and automation solutions.
Automatic Tube Loading System
Automatic tube feeding and loading for continuous tube processing without manual handling.
Exchange Table Upgrade
Enhanced exchange table mechanism for faster switching and improved throughput on sheet processing.
Rotary Axis Enhancement
High-precision rotary axis for improved tube cutting accuracy and consistency.
Core Specifications at a Glance
Technical Specifications
Open Exchange Sheet & Tube Fiber Laser Cutting Machine
| Model | Working Areamm | Laser PowerkW | Positioning Speedm/min | Accuracymm |
|---|---|---|---|---|
| ZW-LEXT-3015 | 3000 × 1500 | 1 - 12 | 80 | ±0.05 |
| ZW-LEXT-4020 | 4000 × 2000 | 2 - 15 | 100 | ±0.05 |
* All figures are standard values. For custom configurations and detailed specifications, please contact our engineering team.
Trusted Worldwide
ZW CNC Machine
Why Choose ZW CNC for Your Open Exchange Sheet & Tube Laser Cutter
ZW CNC has decades of experience in laser cutting machine manufacturing. Our open exchange sheet & tube series combines proven exchange table technology with versatile tube processing capability for mixed production environments.
Proven Manufacturing Base
50,000m² facility with advanced production equipment, validated over 48 years of laser cutting machine manufacturing for global markets.
Global Service Network
50+ service centers worldwide with 24-hour response capability, so your equipment stays productive across different markets.
Engineered for Long-term Value
Strong configuration designed for demanding production — built to support multi-shift operation and long-term upgrade paths.
Frequently Asked Questions
- The main advantage is flexibility: one machine handles both sheet metal and tube cutting, reducing capital investment and floor space. It is ideal for shops with mixed production where dedicated machines would be underutilized.
- Typical tube diameter range is 20mm to 150mm, covering common round tubes, square tubes, and rectangular profiles. Specific range depends on configuration.
- The exchange table has two work surfaces. While cutting on one table, the other can be loaded with the next sheet. When cutting completes, the tables exchange positions, minimizing idle time.
- Yes, with proper rotary axis calibration and fixturing, tube cutting precision matches sheet cutting quality. The rotary axis ensures accurate rotation for consistent cutting around the tube circumference.
- For most mixed production applications, 6kW to 12kW provides good balance. Higher power handles thicker sheets while maintaining reasonable speed on medium thickness tube cutting.
What are the advantages of open exchange sheet & tube over dedicated machines?
What tube sizes can the machine process?
How does the exchange table work?
Is the tube processing as precise as sheet cutting?
What laser power is recommended for sheet & tube processing?
