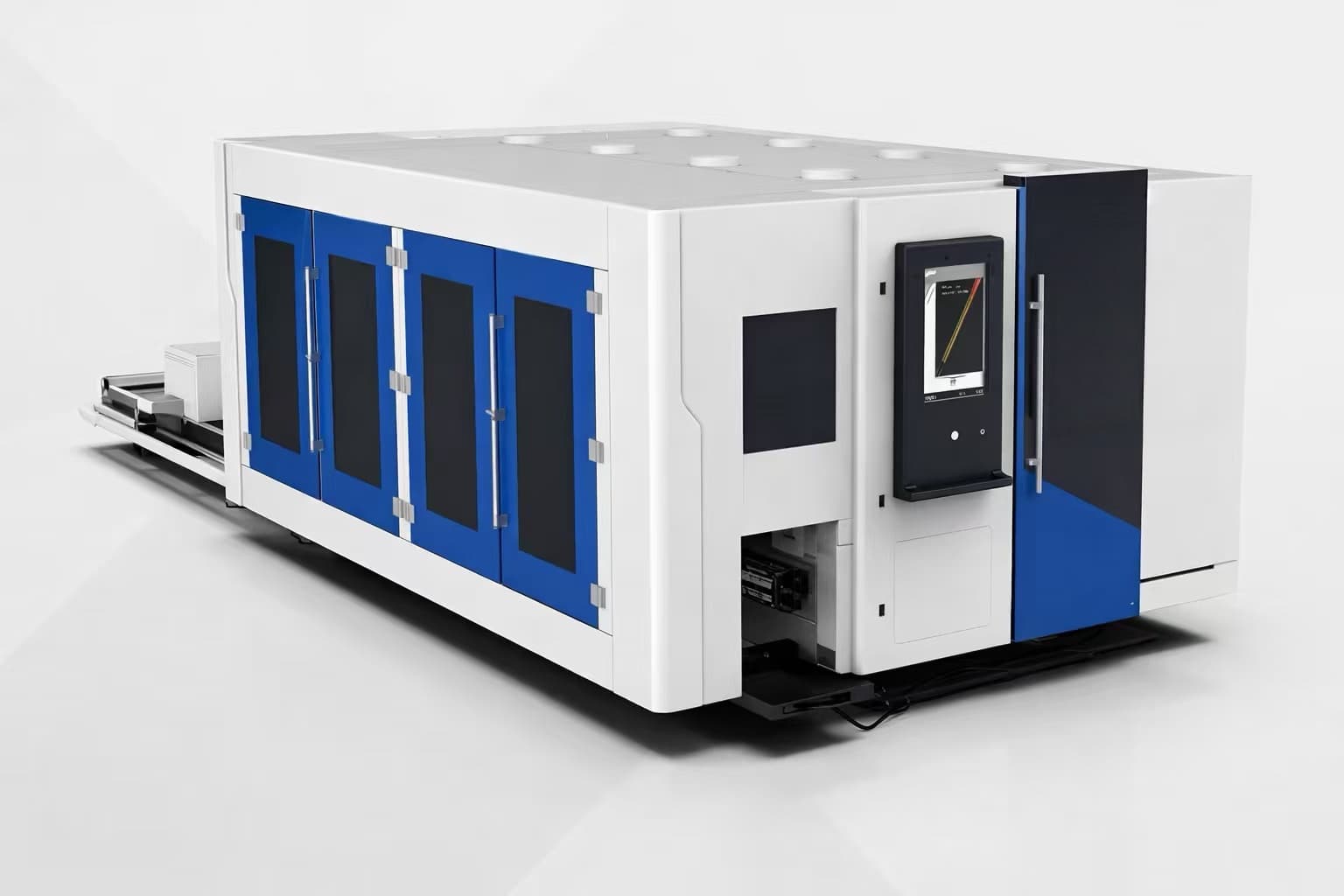

Versatile Sheet & Tube Dual-Purpose Cutting
Sheet & tube fiber laser cutting machines are designed for workshops that need to process both sheet metal and tube materials. This dual-purpose capability provides maximum flexibility for mixed production environments without requiring separate cutting equipment.
The standard sheet cutting table handles flat panels and profiles, while an integrated rotary axis enables efficient tube processing. Switching between material types is straightforward, enabling flexible production scheduling.
Whether you are manufacturing furniture frames, automotive components, or general fabrication parts, sheet & tube laser cutting delivers versatile capability in a single machine.
Get Configuration Recommendation
See Sheet & Tube Laser Cutting in Action
Watch how dual-purpose capability supports versatile sheet metal and tube processing.
Video coming soon
Versatile Dual-Purpose Laser Cutting Solution
Sheet & tube laser cutting machines are designed for workshops that handle both sheet metal and tube components as part of their regular production mix. Instead of maintaining separate machines, this dual-purpose solution processes both material types efficiently.
The sheet & tube configuration includes a rotary axis for tube processing alongside the standard sheet cutting table. Switching between sheet and tube work is straightforward, enabling flexible production scheduling.
For fabrication shops looking to maximize equipment utilization and reduce floor space requirements, sheet & tube laser cutting offers an efficient unified solution.
Why Choose Sheet & Tube Laser Cutting
Dual Processing Capability
Handles both sheet metal and tube cutting on a single machine, eliminating the need for separate equipment and reducing capital investment.
Versatile Production Scheduling
Switch between sheet and tube processing based on production needs without retooling or relocating workpieces between machines.
Maximized Equipment Utilization
One machine handles two material types, ensuring high utilization rates regardless of production mix.
Reduced Floor Space
Eliminates the need for separate tube laser equipment, saving valuable workshop floor space.
Simplified Production Management
Single machine for mixed production simplifies scheduling, maintenance, and operator training.
Versatile Material Support
Processes round tubes, square tubes, rectangular profiles, and various sheet materials with consistent quality.
Laser Cutting Machine Series
Choose the right laser cutting machine structure for your production needs.
Sheet & Tube
Dual PurposeCombined sheet metal and tube cutting for versatile mixed production.
- Sheet + tube dual processing
- Rotary axis for tube cutting
- Versatile production capability
- Reduced equipment investment
Tube Fiber Laser
Tube FocusSpecialized tube cutting with maximum tube processing capability.
- Specialized tube processing
- Maximum tube diameter range
- High precision rotary axis
- Automatic tube feeding
Open Type
Sheet FocusOpen table for standard sheet metal cutting.
- Open table design
- Sheet metal focus
- Easy operation
- Cost-effective
Choose Sheet & Tube if...
- You process both sheets and tubes regularly — Dual-purpose capability eliminates the need for separate machines.
- You want to maximize equipment utilization — Single machine handles two material types for high utilization rates.
- Floor space is limited — Eliminates the need for separate tube laser equipment.
- You need production flexibility — Switch between sheet and tube work as production needs change.
Typical Applications
Sheet & tube fiber laser cutting machines are used in fabrication shops that process both sheet metal and tube components.
Standard Configuration
Every open type laser cutting machine is configured with proven components for reliable daily operation.
Sheet Cutting System
- Standard sheet cutting table
- Pneumatic material clamps
- Sheet support system
- Nesting software integration
Tube Processing System
- Precision rotary axis
- Tube chuck system
- Tube support rollers
- Tube loading assistance
Laser Source
- IPG / Raycus / Max Photonics fiber laser
- Power range: 3kW - 15kW
- Stable output power
- Dual material processing
Control System
- CypCut / CypOne control system
- Sheet and tube programming
- Auto parameter switching
- Production management
CNC Controller Options
Choose the right control platform for your operation style and production requirements.
CypCut Control System
StandardIndustry-standard control system with sheet and tube processing capabilities. Supports both material types with intuitive interface.
CypOne Advanced Control
OptionalAdvanced control system with enhanced sheet and tube processing features, including auto parameter switching between material types.
Not sure which controller? Share your production context and we will recommend the right fit.
Core Specifications at a Glance
Technical Specifications
Sheet & Tube Fiber Laser Cutting Machine
| Model | Sheet Sizemm | Tube Diametermm | Laser PowerkW | Accuracymm |
|---|---|---|---|---|
| ZW-LST-3015 | 3000 × 1500 | 20 - 150 | 3 - 12 | ±0.05 |
| ZW-LST-4020 | 4000 × 2000 | 20 - 180 | 6 - 15 | ±0.05 |
| ZW-LST-6025 | 6000 × 2500 | 20 - 220 | 10 - 20 | ±0.05 |
* All figures are standard values. For custom configurations and detailed specifications, please contact our engineering team.
Trusted Worldwide
ZW CNC Machine
Why Choose ZW CNC for Your Sheet & Tube Laser Cutter
ZW CNC has decades of experience in laser cutting machine manufacturing. Our sheet & tube series combines proven technology with versatile dual-purpose capability.
Proven Manufacturing Base
50,000m² facility with advanced production equipment, validated over 48 years of laser cutting machine manufacturing for global markets.
Global Service Network
50+ service centers worldwide with 24-hour response capability, so your equipment stays productive across different markets.
Engineered for Long-term Value
Strong configuration designed for demanding production — built to support multi-shift operation and long-term upgrade paths.
Frequently Asked Questions
- Sheet & tube machines offer several advantages: reduced capital investment by eliminating separate tube laser equipment, maximized equipment utilization regardless of production mix, and simplified production management with one machine to schedule and maintain.
- Typical tube diameter range is 20mm to 220mm, covering common round tubes, square tubes, and rectangular profiles. Specific range depends on configuration and tube chuck selection.
- Switching between sheet and tube processing is straightforward with the CypCut or CypOne control system. The software handles parameter optimization for each material type, and the rotary axis can be positioned for tube work or retracted for sheet cutting.
- Yes, with proper rotary axis calibration and fixturing, tube cutting precision matches sheet cutting quality. The precision rotary axis ensures accurate rotation for consistent cutting around the tube circumference.
- For most mixed production applications, 6kW to 12kW provides good balance between sheet and tube cutting capability. Higher power handles thicker sheets while maintaining reasonable speed on medium thickness tube cutting.
What are the advantages of sheet & tube over separate machines?
What tube sizes can the machine process?
How do I switch between sheet and tube processing?
Is tube cutting quality equivalent to sheet cutting?
What laser power is recommended for mixed sheet & tube production?
Ready to Explore Sheet & Tube Laser Cutting?
Tell us your sheet and tube processing requirements. We will recommend the right sheet & tube configuration for your mixed production needs.
