Practical Open Table Fiber Laser Cutting
Open type fiber laser cutting machines are designed for workshops that value straightforward operation and easy access. The open table structure allows direct loading from the front and sides, making it practical for standard sheet metal jobs without the complexity of enclosed or exchange table configurations.
This series is available in three table sizes (3015, 4020, 6025) and laser power options ranging from 1kW to 20kW, allowing you to match the configuration to your typical material, thickness and output requirements.
Whether you are equipping a new workshop or adding cutting capability to your fabrication line, the open type series provides reliable fiber laser cutting performance with practical accessibility.
Get Configuration Recommendation
See Open Type Laser Cutting in Action
Watch how the open table structure supports practical sheet metal cutting in workshop environments.
Video coming soon
Practical Open Table Laser Cutting for Everyday Production

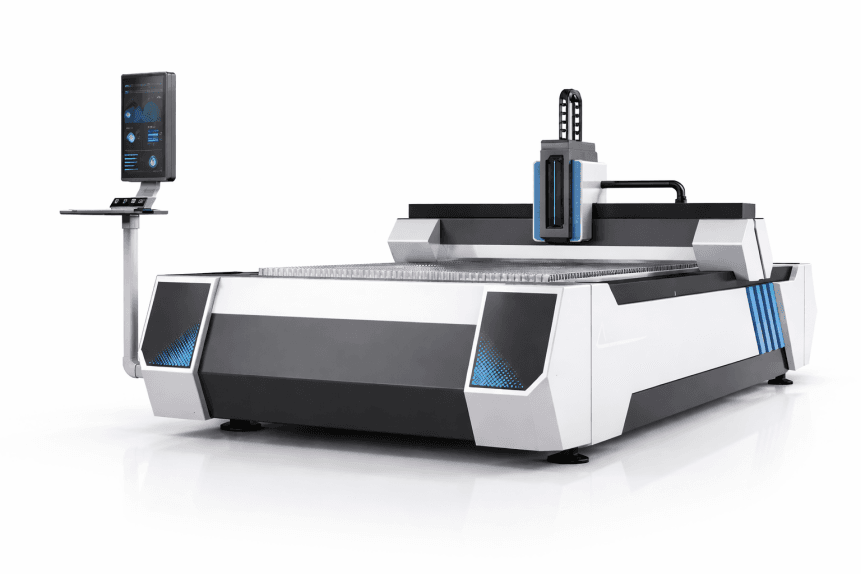

Open type fiber laser cutting machines use an open table structure where the cutting area is not enclosed, allowing direct loading and unloading from the front and sides. This design prioritizes accessibility and straightforward operation over enclosed configurations.
The open table layout is well suited to standard sheet metal jobs: cutting blanks, panels, brackets and profiles from common sheet sizes. It fits typical fabrication workflows where sheets are cut and then moved to bending, welding or assembly operations.
Open type machines offer a practical entry point into fiber laser cutting without the complexity or investment required for exchange tables or fully enclosed designs. You can still select table size and laser power to match your material, thickness and output needs.
Why Choose Open Type Laser Cutting
Easy Sheet Loading and Unloading
Open table structure provides clear access from the front and sides, making it easy to load and unload sheets manually or with simple handling equipment.
Clear Visibility of Cutting Area
Operators can see the cutting process directly without enclosed structures, simplifying monitoring and intervention when needed.
Practical for Standard Sheet Metal Work
Well matched to typical sheet metal jobs including blanks, panels, brackets and profiles from standard sheet sizes.
Cost-Effective Entry Point
Generally offers lower initial cost than exchange table or fully enclosed designs while delivering reliable fiber laser cutting performance.
Flexible Table Size Selection
Choose from 3015, 4020 or 6025 table sizes to match your typical sheet size and workspace constraints.
Simple Maintenance Access
Open structure allows easier access for routine maintenance, cleaning and consumable replacement.
Laser Cutting Machine Series
Choose the right laser cutting machine structure for your production needs.
Open Type
Open TableOpen table structure for direct access and straightforward operation.
- Open table for easy loading/unloading
- Clear visibility of cutting area
- Simple maintenance access
- Cost-effective entry point
Exchange Table
Dual TableDual-table design for continuous cutting with no loading downtime.
- Exchange table for continuous operation
- Reduced idle time between cuts
- Higher production throughput
- Automated table switching
Choose Open Type if...
- You prefer direct access to the cutting table — Open structure makes loading, monitoring and maintenance straightforward.
- Your work is mainly standard sheet sizes — Well suited to typical blanks, panels and brackets rather than high-volume automation.
- Budget and simplicity are priorities — Open type offers a practical entry point without unnecessary complexity.
- You need flexible table size options — Choose the table size that best fits your workshop space and typical sheet dimensions.
Typical Applications
Open type fiber laser cutting machines are used across a wide range of sheet metal fabrication applications.
Standard Configuration
Every open type laser cutting machine is configured with proven components for reliable daily operation.
Laser Source
- IPG / Raycus / Max Photonics fiber laser
- Power range: 1kW - 20kW
- Stable output power
- Low maintenance design
Cutting Head
- Precitec / Raytools cutting head
- Auto focus capability
- Height following sensor
- Anti-collision protection
Motion System
- Yaskawa / Panasonic servo motors
- HIWIN linear guides
- High positioning accuracy
- Smooth acceleration
Control System
- CypCut / CypOne control system
- User-friendly interface
- USB / network file transfer
- Real-time monitoring
CNC Controller Options
Choose the right control platform for your operation style and production requirements.

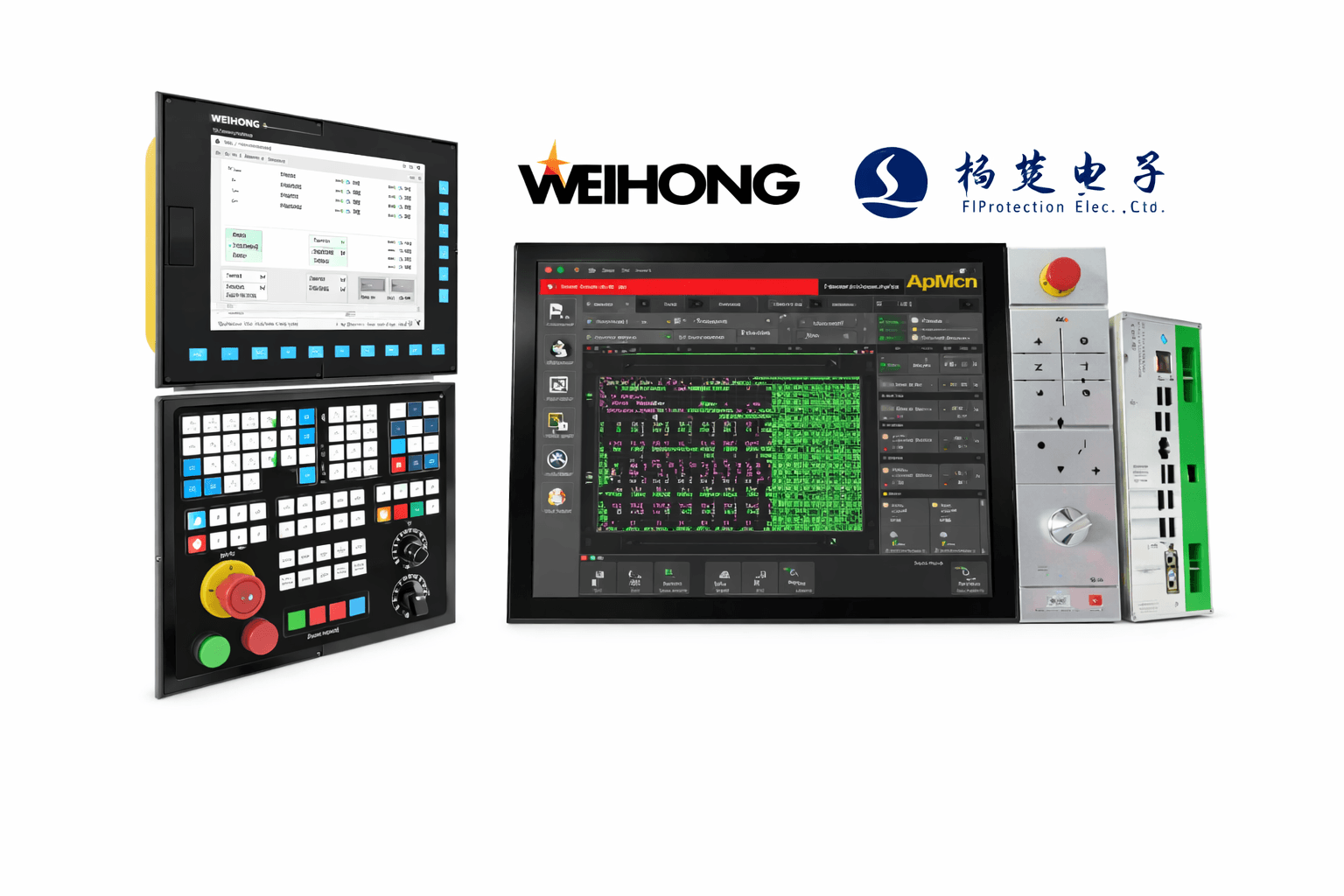

CypCut Control System
StandardIndustry-standard control system with intuitive interface for programming and operation. Supports common file formats and provides reliable performance for daily cutting tasks.

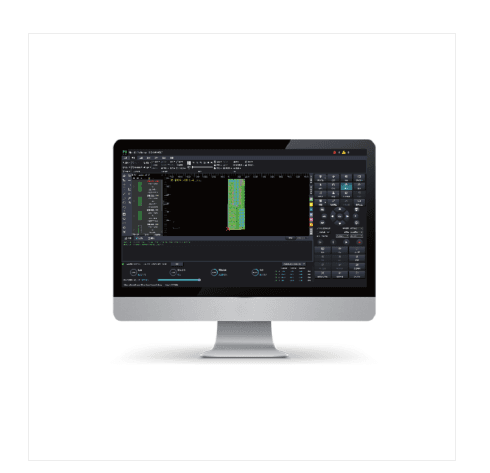

CypOne Advanced Control
OptionalAdvanced control system with enhanced features including 3D simulation, auto parameter optimization and production management tools for higher productivity.
Not sure which controller? Share your production context and we will recommend the right fit.
Core Specifications at a Glance
Technical Specifications
Open Type Fiber Laser Cutting Machine
| Model | Working Areamm | Laser PowerkW | Positioning Speedm/min | Accuracymm |
|---|---|---|---|---|
| ZW-LCO-3015 | 3000 × 1500 | 1 - 12 | 80 | ±0.05 |
| ZW-LCO-4020 | 4000 × 2000 | 1 - 15 | 100 | ±0.05 |
| ZW-LCO-6025 | 6000 × 2500 | 2 - 20 | 120 | ±0.05 |
* All figures are standard values. For custom configurations and detailed specifications, please contact our engineering team.
Trusted Worldwide
ZW CNC Machine
Why Choose ZW CNC for Your Open Type Laser Cutter
ZW CNC has decades of experience in laser cutting machine manufacturing. Our open type series is built with proven components and rigorous quality control to deliver reliable performance in daily workshop operation.
Proven Manufacturing Base
50,000m² facility with advanced production equipment, validated over 48 years of laser cutting machine manufacturing for global markets.
Global Service Network
50+ service centers worldwide with 24-hour response capability, so your equipment stays productive across different markets.
Engineered for Long-term Value
Strong configuration designed for demanding production — built to support multi-shift operation and long-term upgrade paths.
Frequently Asked Questions
- An open type fiber laser cutting machine has an open table structure where the cutting area is not enclosed in a full cabin. Operators have clear access from the front and sides, making it easier to load and unload sheets. The laser head moves over the sheet on a gantry structure. This design prioritizes accessibility and straightforward operation.
- Open type machines offer easier sheet loading, clearer visibility of the cutting area, simpler maintenance access, and generally lower initial cost. They are well suited to workshops that value practical operation over high automation or continuous cutting capabilities.
- Table size should match your typical sheet size and maximum part dimensions. Consider your most common blank sizes and whether you need to handle larger sheets. 3015 is suitable for standard sheet sizes, 4020 for wider sheets, and 6025 for large-format plates.
- Laser power depends on your typical material thickness and desired cutting speed. 1-3kW is suitable for thin sheet cutting up to 6mm carbon steel. 6-12kW handles most fabrication work up to 16mm. 15-20kW is for heavy plate cutting up to 25-40mm carbon steel.
- Open type machines work well for medium-volume production with frequent sheet changes. For very high-volume continuous cutting, exchange table or enclosed machines with automation may be more suitable. Open type is a practical choice when flexibility and operation simplicity are priorities.
What is an open type fiber laser cutting machine?
What are the advantages of open type over enclosed or exchange table machines?
How do I choose the right table size?
What laser power do I need?
Is open type suitable for high-volume production?
Ready to Explore Open Type Laser Cutting?
Tell us your typical material, thickness, sheet size and production goals. We will recommend the right open type configuration for your workshop.
